DTC B1176:13 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Front door latch switch (passenger-side) circuit malfunction |
| DETECTION CONDITION |
- Open circuit detected in front door latch switch (driver-side) circuit with the front door (driver-side) closed (front door latch switch {driver-side} on)
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction

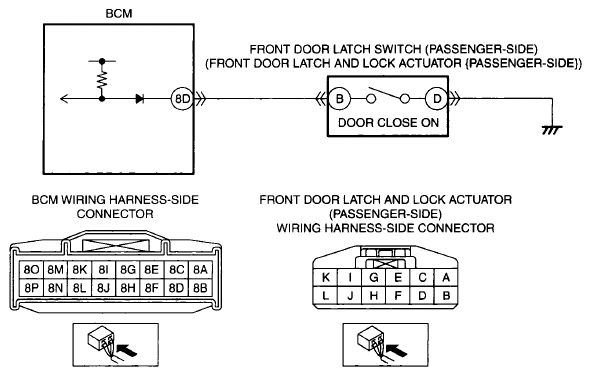

- Open circuit in wiring harness between front door latch and lock actuator (passenger-side) terminal D and body ground
- Front door latch switch (passenger-side) malfunction
- Open circuit in wiring harness between front door latch and lock actuator (passenger-side) terminal B and BCM terminal 8D
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
