DTC B1174:13 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |

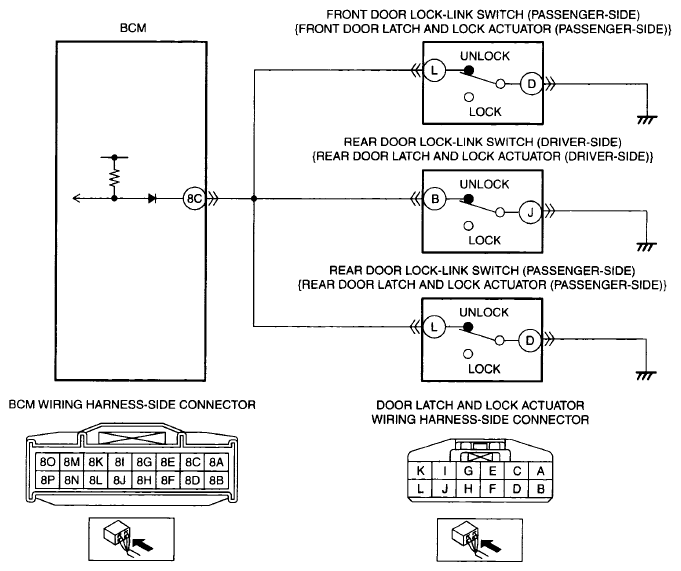

Door lock-link switch circuit malfunction |
| DETECTION CONDITION |
- Open circuit detected in door lock-link switch circuit with the door lock-link switch unlocked
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Open circuit in wiring harness between front door latch and body ground
- Open circuit in wiring harness between rear door latch and body ground
- Open circuit in wiring harness between rear door latch and body ground
- Open circuit in wiring harness between front door latch and BCM terminal 8C
- Open circuit in wiring harness between rear door latch and BCM terminal 8C
- Open circuit in wiring harness between rear door latch and BCM terminal 8C
- Front door lock-link switch (passenger-side) malfunction
- Rear door lock-link switch (driver-side) malfunction
- Rear door lock-link switch (passenger-side) malfunction
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
