DTC B1172:13 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |

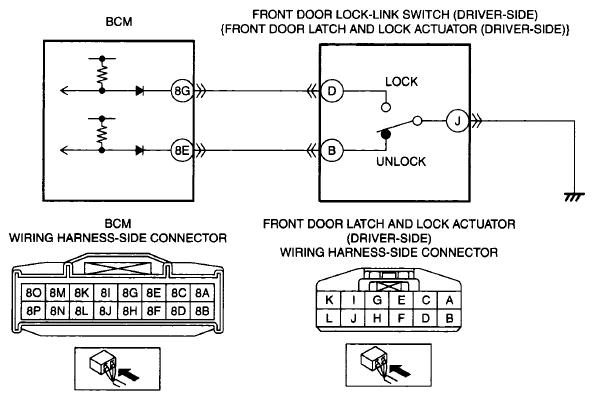

Front door lock-link switch (driver-side) circuit malfunction |
| DETECTION CONDITION |
- Open circuit detected in front door lock-link switch (driver-side) unlock-side circuit with the front door lock-link switch (driver-side) unlocked
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Open circuit in wiring harness between front door latch and lock actuator (driver-side) terminal J and body ground
- Front door lock-link switch (driver-side) malfunction
- Open circuit in wiring harness between front door latch and lock actuator (driver-side) terminal B and BCM terminal 8E
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
