DTC B113E:11 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Trunk lid opener switch (vehicle interior) circuit malfunction |
| DETECTION CONDITION |
- Short to ground in trunk lid opener switch (vehicle interior) circuit with the trunk lid opener switch (vehicle interior) off
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Trunk lid opener switch (vehicle interior) malfunction

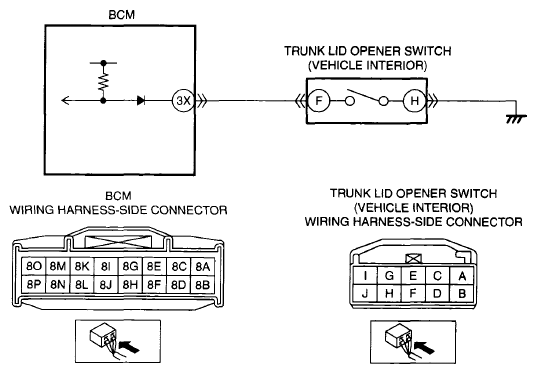

- Short to ground in wiring harness between trunk lid opener switch (vehicle interior) terminal F and BCM terminal 3X
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
