DTC B10D0:11 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Trunk lid opener switch (vehicle exterior) circuit malfunction |
| DETECTION CONDITION |
- Short to ground detected in trunk lid opener switch (vehicle exterior) circuit with the ignition switch ON
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Trunk lid opener switch (vehicle exterior) malfunction

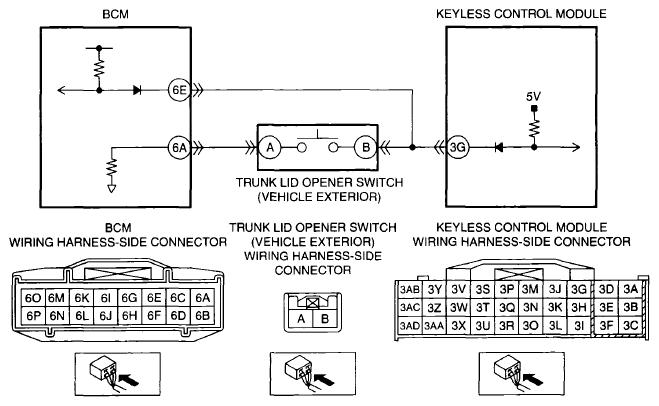

- Short to ground in wiring harness between trunk lid opener switch (vehicle exterior) terminal B and BCM terminal 6E
- Short to ground in wiring harness between keyless control module terminal 3G and BCM terminal 6E
- Keyless control module malfunction
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
