DTC B108F:16 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Door lock switch circuit malfunction |
| DETECTION CONDITION |
- The voltage of door lock switch circuit is less than 3.75 V
with the door lock switch off
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Door lock switch (driver-side/passenger-side) malfunction

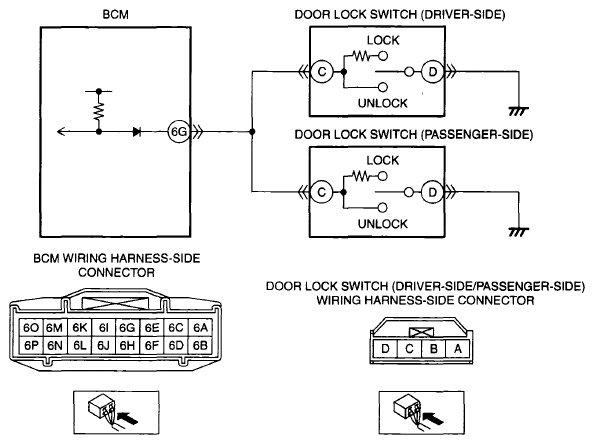

- Short to ground in wiring harness between door lock switch (driver-side/passenger-side) terminal C and BCM terminal 6G
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
