DTC B1079:13 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Hood latch switch circuit malfunction |
| DETECTION CONDITION |
- Open circuit detected in hood latch switch circuit with the hood closed (hood latch switch on)
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Open circuit in wiring harness between hood latch switch terminal B and body ground
- Hood latch switch malfunction

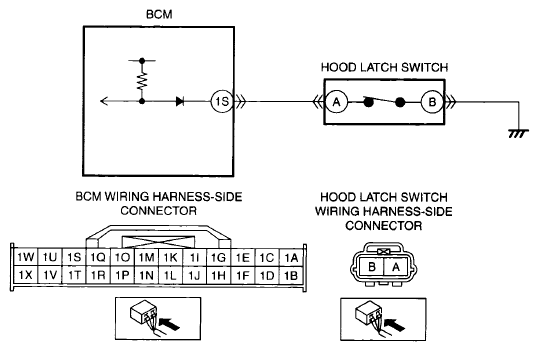

- Open circuit in wiring harness between hood latch switch terminal A and BCM terminal 1S
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
