Without Advanced Keyless Entry And Push Button Start System

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

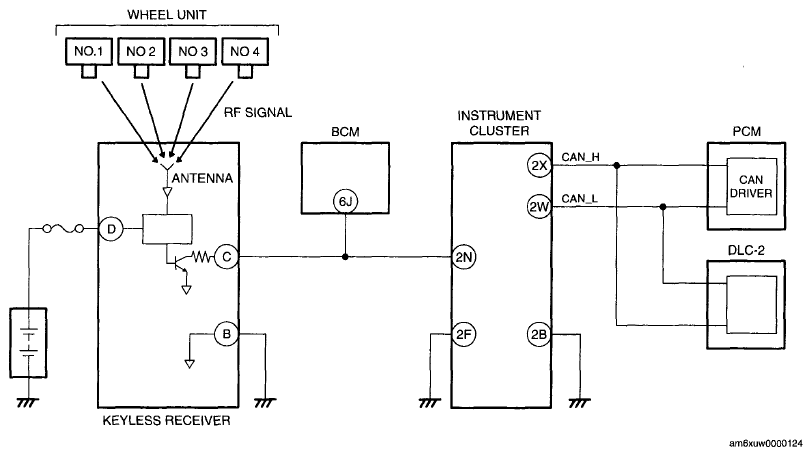

Fig 1: Tire Pressure Monitoring System Wiring Diagram - Without Advanced Keyless Entry And Push Button Start System
G06205361Courtesy of MAZDA MOTORS CORP.
