Without Advanced Keyless Entry And Push Button Start System
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC CHART
| DESCRIPTION |
- Communication failure between instrument cluster and keyless receiver
|
| DETECTION CONDITION |
- The instrument cluster cannot receive the signal from the keyless receiver.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction (keyless receiver, BCM and/or instrument cluster)
- Keyless receiver malfunction

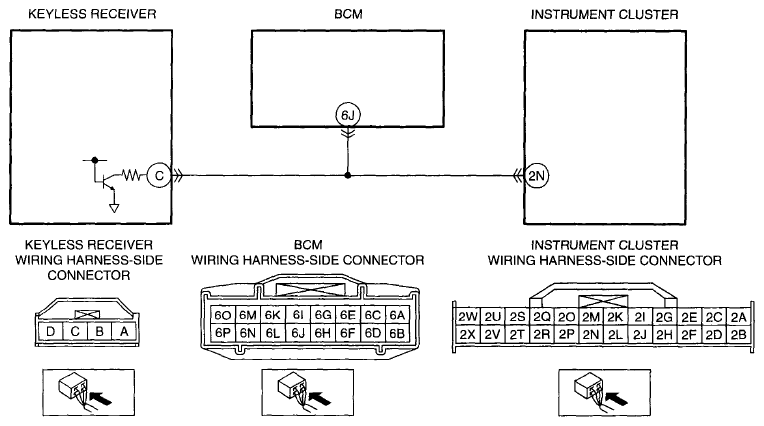

- Short to ground in wiring harness between keyless receiver terminal C and BCM terminal 6J
- Short to ground in wiring harness between keyless receiver terminal C and instrument cluster terminal 2N
- Short to power supply in wiring harness between keyless receiver terminal C and BCM terminal 6J
- Short to power supply in wiring harness between keyless receiver terminal C and instrument cluster terminal 2N
- Open circuit in wiring harness between keyless receiver terminal C and BCM terminal 6J
- Open circuit in wiring harness between keyless receiver terminal C and instrument cluster terminal 2N
- BCM malfunction
- Instrument cluster malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
