Wiper And Washer Switch Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. See COLUMN COVER REMOVAL/INSTALLATION )
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

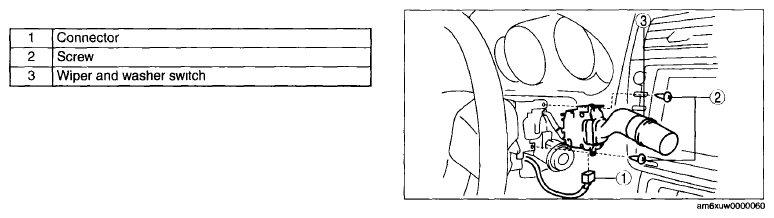

    Fig 1: Identifying Wiper And Washer Switch Connector Terminal
    G06199549Courtesy of MAZDA MOTORS CORP.
