Windshield Wiper Motor Assembly Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the windshield wiper motor to the vehicle wiring harness connector, operate the windshield wipers, and then stop them at the auto-stop position.
  2. Adjust the motor crank and wiper link No. 1 so that they are parallel as shown in the figure.
  3. Assemble the windshield wiper motor.

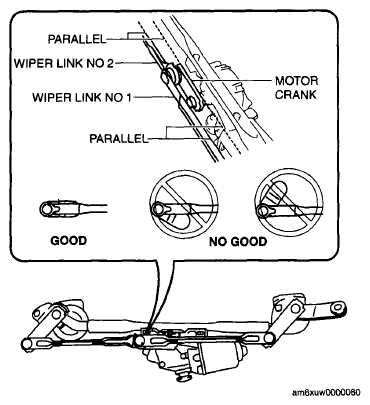

    Fig 1: Identifying Windshield Wiper Motor Assembly
    G06199538Courtesy of MAZDA MOTORS CORP.
