Windshield Wiper Motor Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

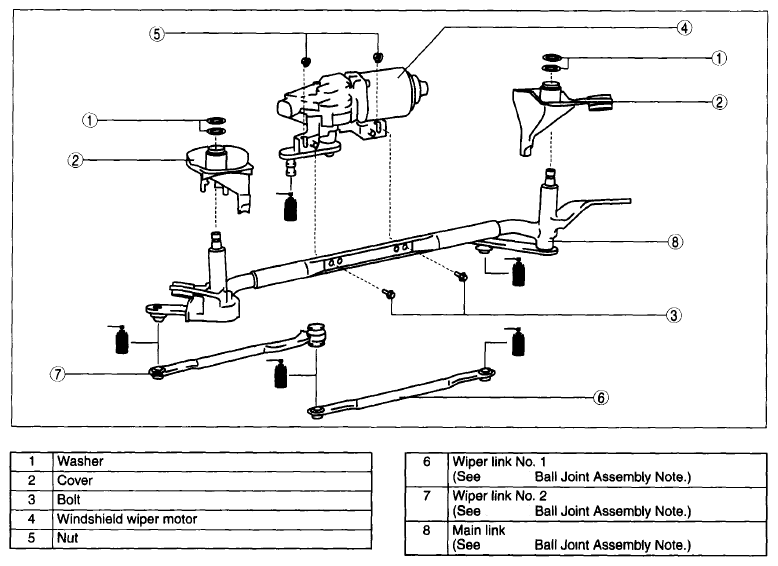

    Fig 1: Identifying Windshield Wiper Motor Components
    G06199536Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
