Washer Tank Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. See FRONT BUMPER REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the table.

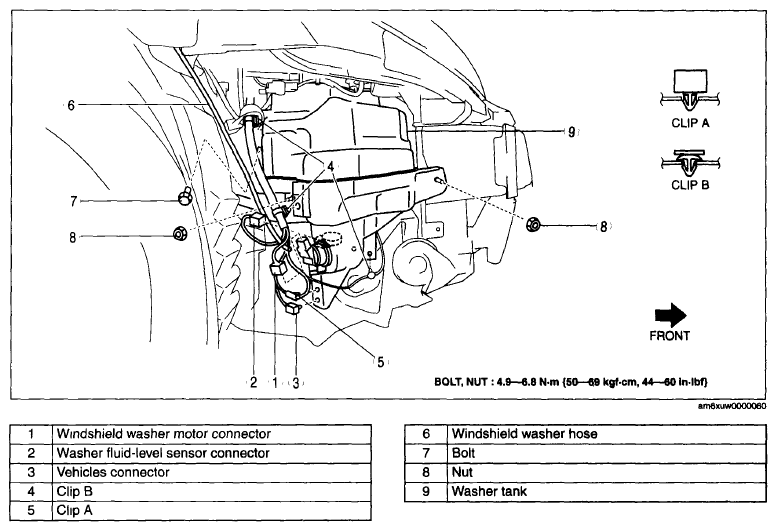

    Fig 1: Identifying Washer Tank Components
    G06199540Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
