Passenger-side Air Bag Module

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • The passenger-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag module, make sure to operate (deploy) both passenger-side air bag module inflators simultaneously, following the procedure below.
NOTE:
  • The SSTs, two types of adapter harnesses (for inflators No. 1 and No. 2) and two deployment tools are to be used to operate (deploy) the passenger-side air bag module.
  1. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  2. Using nippers, disconnect the passenger-side air bag module connector as shown in the figure.
    CAUTION:
    • When disconnecting the passenger-side air bag module connector, pull it out straight, but do not rotate it. If it is rotated or pulled out at an angle and the terminals are damaged, the SST (adapter wiring harness) may not be connected and the passenger-side air bag module may not operate (deploy).
      Fig 1: Disconnecting Passenger-Side Air Bag Module Connectors
      G06200466Courtesy of MAZDA MOTORS CORP.
  3. Connect the SST (Adapter harness)  to the passenger-side air bag module as shown in the figure
    4. Fig 2: Connecting SSTs To Passenger-Side Air Bag Module
    G06200467Courtesy of MAZDA MOTORS CORP.
  4. Connect the SST (Deployment tool)  to the SST (Adapter harness)  .

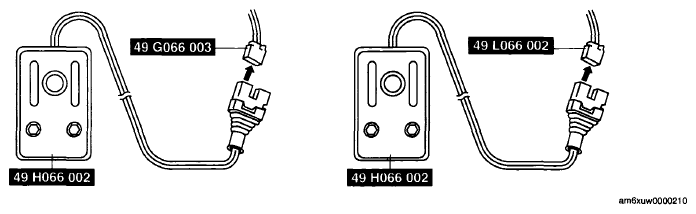

    Fig 3: Connecting Deployment Tool To Adapter Harness
    G06200468Courtesy of MAZDA MOTORS CORP.
  5. Connect the SST (Deployment tool)  to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  6. Verify that the red lamp on the SST (Deployment tool)  is illuminated.
  7. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
  8. Press the activation switch on the SST (Deployment tool)  connected with 49 L066 002 (a yellow connector) of the SST (Adapter harness)  , and after 3 s, press the activation switch on the other SST (Deployment tool)  to operate (deploy) the air bag module (both inflators)
    Fig 4: Identifying Activation Switch On SST
    G06200465Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  9. Disconnect the SST (Deployment tool)  form the SST (Adapter harness)  .
