Rear Upper Arm Bushing Installation Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

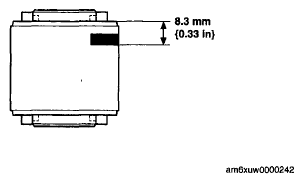

Mark the new bushing as shown in the figure.

Fig 1: Identifying Bushing Mark
Courtesy of MAZDA MOTORS CORP.

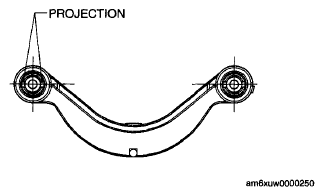

Set the bushing to the rear upper arm as shown in the figure.

Fig 2: Identifying Bushing And Rear Upper Arm
Courtesy of MAZDA MOTORS CORP.
Press the bushing in to the marking using the SSTs.
Substitution SST
- 49 E028 302
  Outer diameter: 36.8-38.8 mm {1.45-1.52 in}

  Inner diameter: 24 mm {0.94 in} or more

  Height: 32 mm {1.3 in} or more
- 49 B034 202A
  Outer diameter: 46 mm {1.8 in} or more

  Inner diameter: 42 mm {1.7 in} or more

  Plate thickness: 1 mm {0.04 in} or more

  Fig 3: Pressing Bushing In To Marking Using SST
  Courtesy of MAZDA MOTORS CORP.

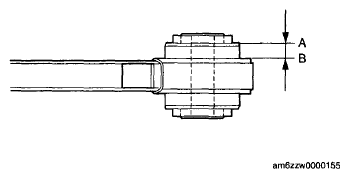

Verify that clearance distance A-B is 7.7-8.9 mm {0.31-0.35 in}.
