Rear Stabilizer Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

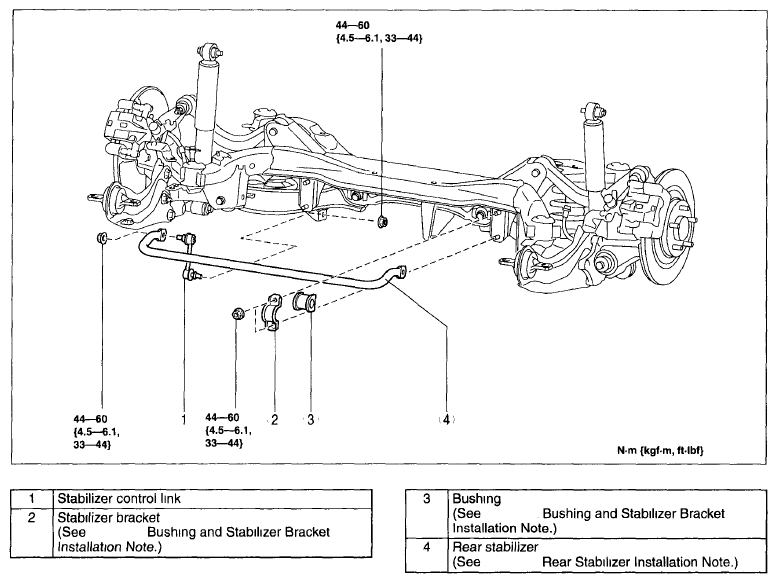

    Fig 1: Identifying Rear Stabilizer Removal Order
    G06205416Courtesy of MAZDA MOTORS CORP.
