Rear Shock Absorber Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Support the rear axle component using a jack.

Fig 1: Supporting Rear Axle Component Using Jack
Courtesy of MAZDA MOTORS CORP.
Remove the rear shock absorber.

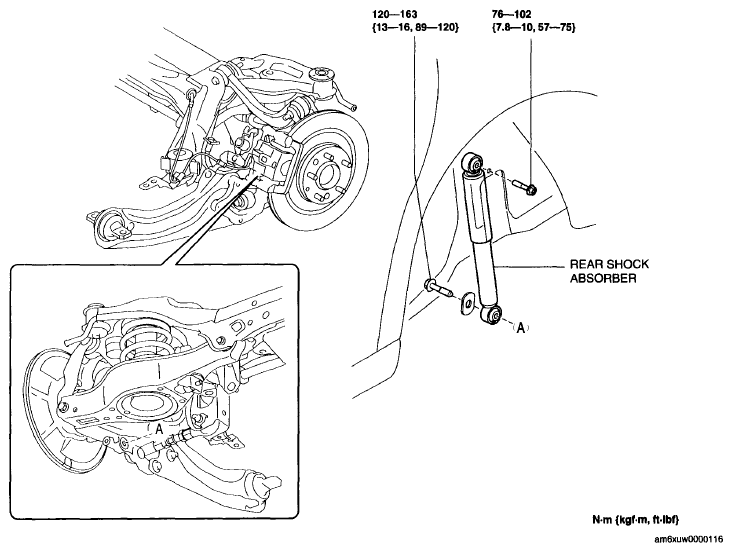

Fig 2: Rear Shock Absorber With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Temporarily install the rear shock absorber.
Tighten the rear shock absorber upper side to the specified torque.
Tighten the rear shock absorber lower side bolt to the specified torque using an adjustable wrench while holding the washer in place.

Fig 3: Tightening Rear Shock Absorber Lower Side Bolt To Specified Torque
Courtesy of MAZDA MOTORS CORP.
