Rear Lower Arm Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear coil spring. See REAR COIL SPRING REMOVAL/INSTALLATION .
Remove the rear lower arm.

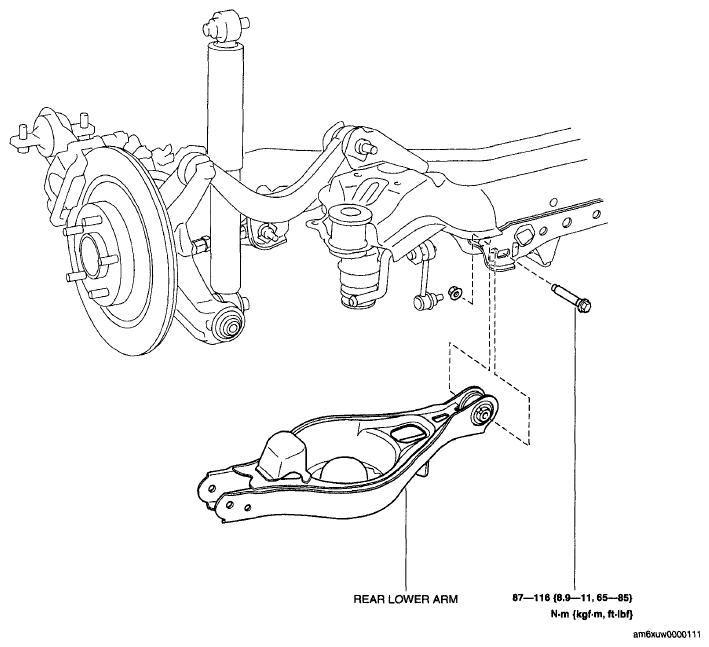

Fig 1: Identifying Rear Lower Arm
Courtesy of MAZDA MOTORS CORP.
Install the rear coil spring. See REAR COIL SPRING REMOVAL/INSTALLATION .
Install the rear lower arm.
Inspect the rear wheel alignment. See REAR WHEEL ALIGNMENT .
