Rear Coil Spring Component Removal Note
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- If the rear coil spring contacts the bound stopper installation area of the rear crossmember during rear coil spring removal, the paint of rear coil spring may be damaged, resulting in rust. Moreover, the rear coil spring may brake if rust is left unrepaired. When removing the rear coil spring, affix tape to edge of the bound stopper installation area of the rear crossmember, and be careful not to damage the rear coil spring.

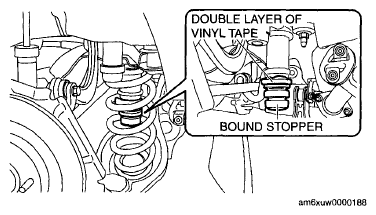

- Affix a double layer of vinyl tape to bound stopper installation area or the rear crossmember.
- Lower the jack slowly and remove the rear coil spring.
