Rear Coil Spring Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.
Inspect the rear wheel alignment. See REAR WHEEL ALIGNMENT .

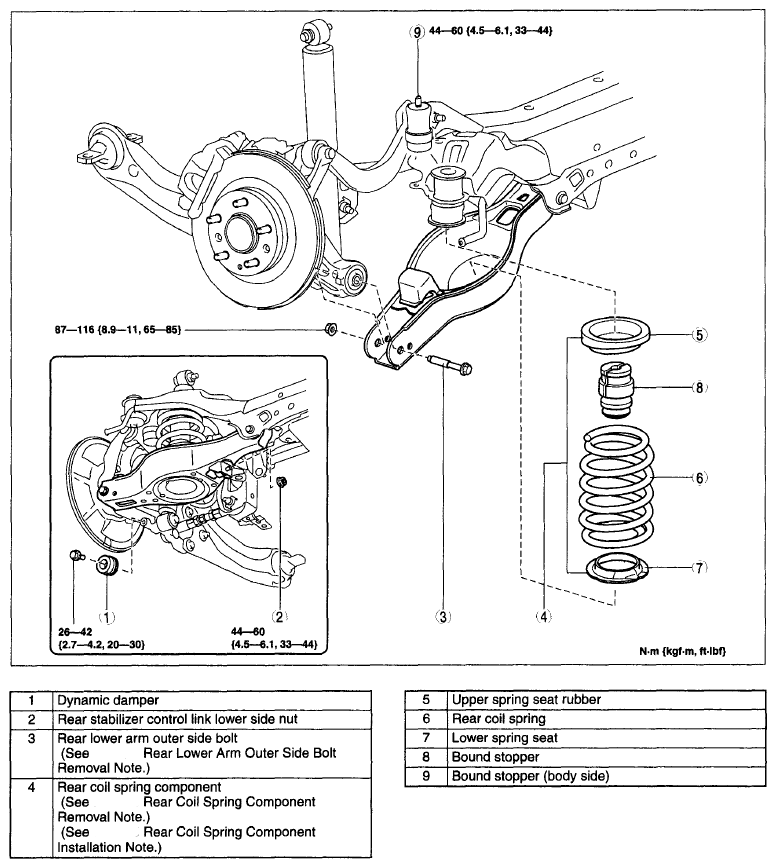

Fig 1: Rear Coil Spring Removal Order With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
