Seat Warmer Switch Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable
  2. Remove the upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
  3. Remove the decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
  4. Remove the center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
  5. Squeeze the tabs of seat warmer switch and pull it outward to remove it.

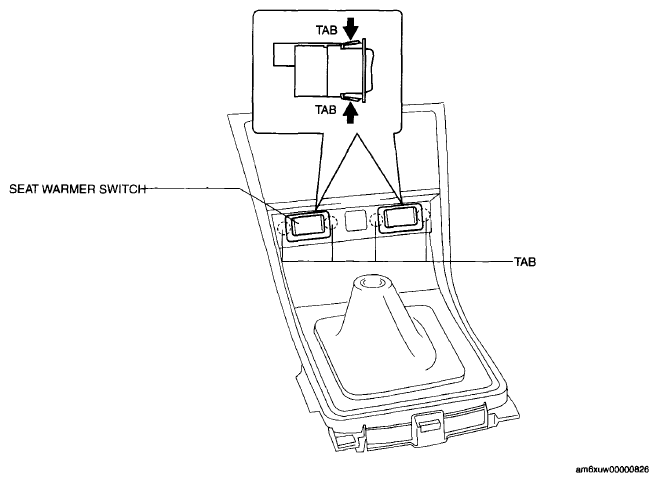

    Fig 1: Squeezing Seat Warmer Switch Tabs
    G06200849Courtesy of MAZDA MOTORS CORP.
  6. Remove the seat warmer switch.
  7. Install in the reverse order of removal.
