Power Seat Switch Inspection

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the power seat switch connector.
Inspect for continuity between the power seat switch connector terminals using an ohmmeter.
- If not as specified, replace the power seat switch.

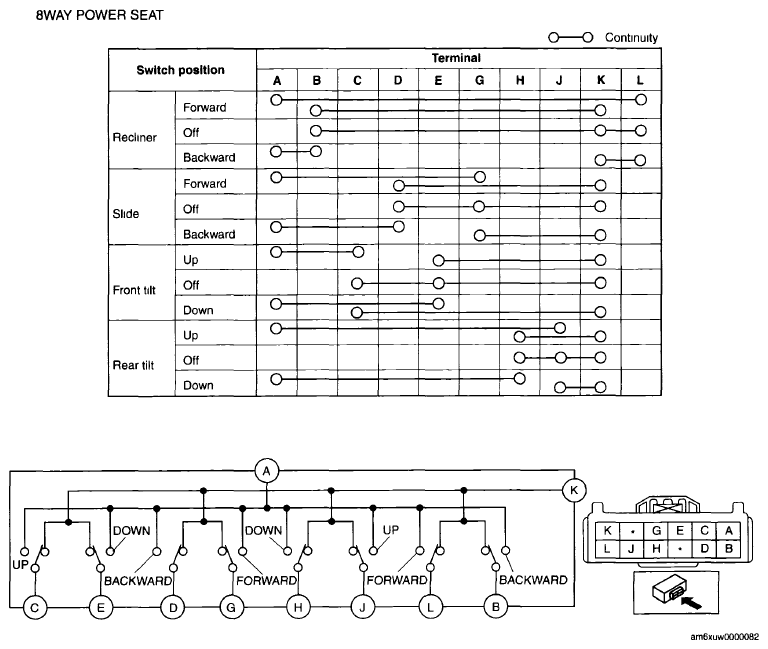

  Fig 1: 8-Way Power Seat Switch Continuity Chart With Circuit
  Courtesy of MAZDA MOTORS CORP.

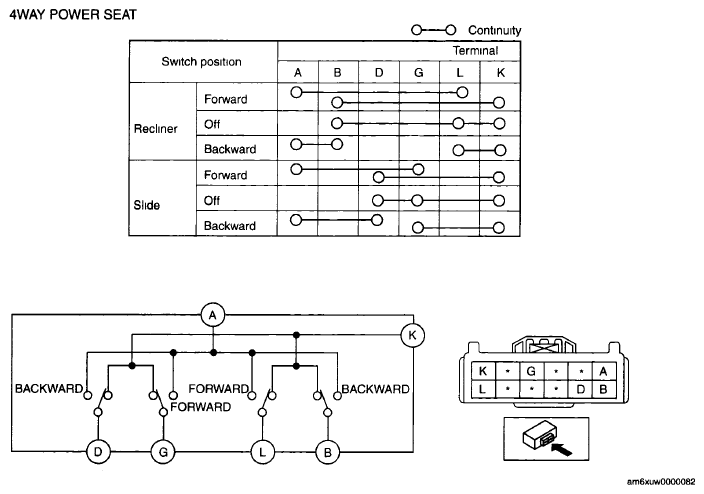

  Fig 2: 4-Way Power Seat Switch Continuity Chart With Circuit
  Courtesy of MAZDA MOTORS CORP.
