Vehicles Without Power Seat System: Passenger-side

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the belt anchor cover. See FRONT SEAT BELT REMOVAL/INSTALLATION .
  2. Remove the lower anchor of the front seat belt installation bolt. See FRONT SEAT BELT REMOVAL/INSTALLATION .
  3. Using a cloth, remove the recliner lever installation clip and remove the recliner lever.

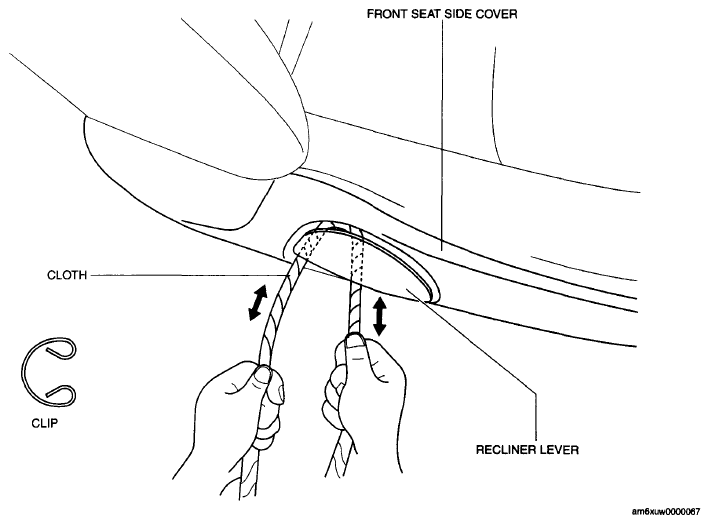

    Fig 1: Removing/Installing Recliner Lever
    G06200825Courtesy of MAZDA MOTORS CORP.
  4. Pull the front seat side cover in the order of (1), (2) shown in the figure to disengage the hook and clips.

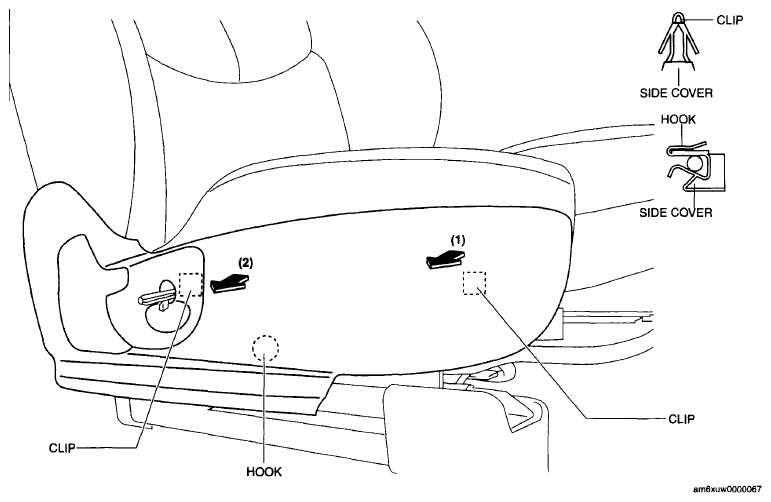

    Fig 2: Order Of Pulling Front Seat Side Cover
    G06200826Courtesy of MAZDA MOTORS CORP.
  5. Pull the front seat side cover in the direction of arrow, remove the clip.
    Fig 3: Pulling Front Seat Side Cover
    G06200827Courtesy of MAZDA MOTORS CORP.
  6. Remove the front seat side cover.
  7. Install in the reverse order of removal.
