Vehicles With Power Seat System: Passenger-side

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the belt anchor cover. See FRONT SEAT BELT REMOVAL/INSTALLATION .
  3. Remove the lower anchor of the front seat belt installation bolt. See FRONT SEAT BELT REMOVAL/INSTALLATION .
  4. Remove the power seat switch knobs in the direction of arrow shown in the figure.

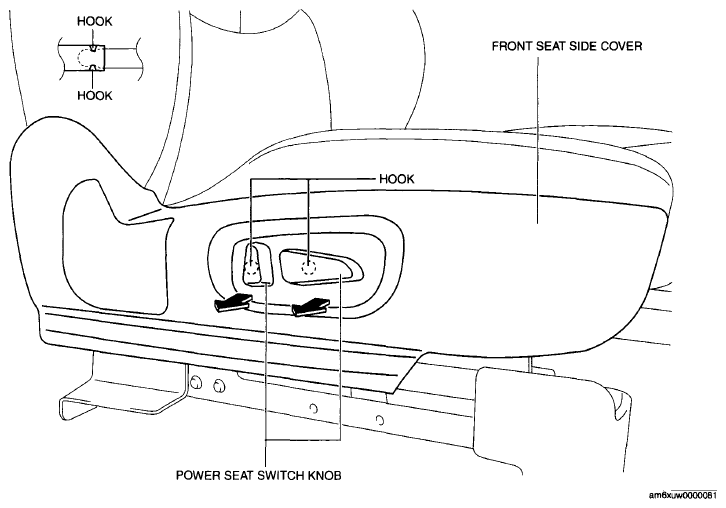

    Fig 1: Removing/Installing Power Seat Switch Knobs
    G06200817Courtesy of MAZDA MOTORS CORP.
  5. Pull the front seat side cover in the order of (1), (2) shown in the figure to disengage the hook and clips.

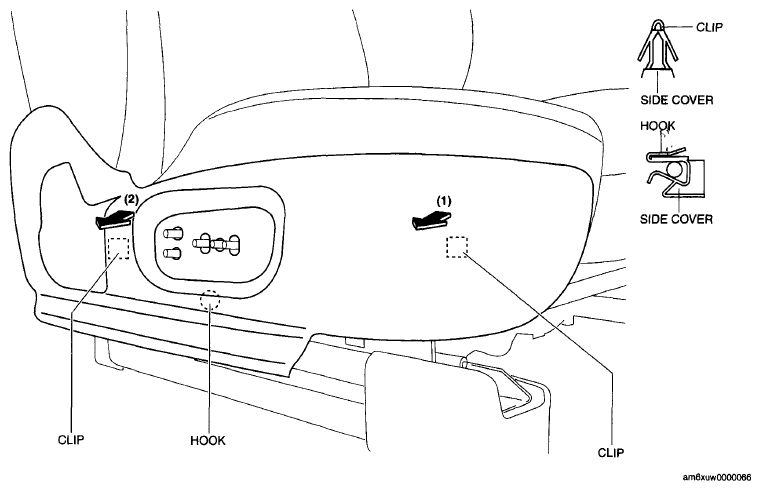

    Fig 2: Identifying Order Of Pulling Front Seat Side Cover
    G06200818Courtesy of MAZDA MOTORS CORP.
  6. Pull the front seat side cover in the direction of arrow, remove the clip.
    Fig 3: Pulling Front Seat Side Cover
    G06200819Courtesy of MAZDA MOTORS CORP.
  7. Remove the front seat side cover.
  8. Disconnect the power seat switch connector.
  9. Install in the reverse order of removal.
