Vehicles With Power Seat System: Driver-side

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.

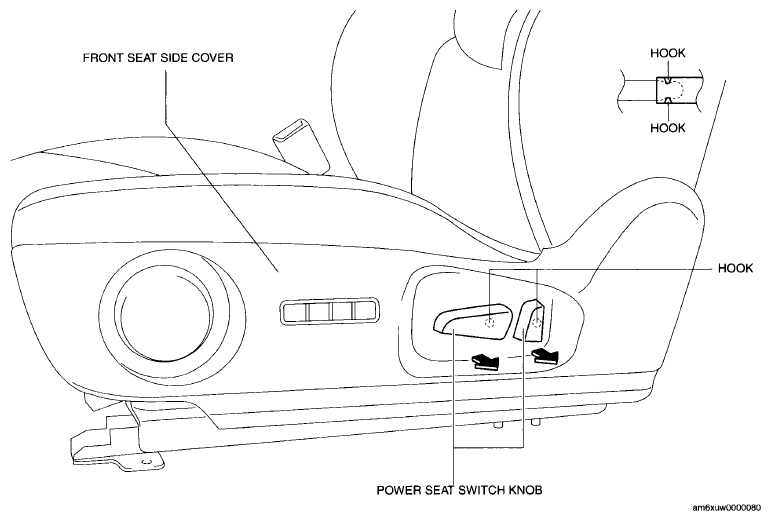

Pull the power seat switch knobs in the direction of arrow, while remove the hook

Fig 1: Pulling Power Seat Switch Knobs
Courtesy of MAZDA MOTORS CORP.

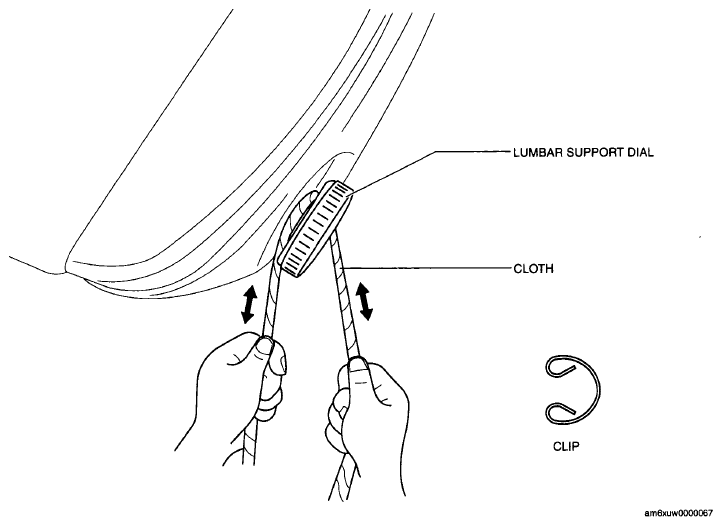

Using a cloth, remove the lumber support dial installation clip and remove the lumber support dial.

Fig 2: Removing/Installing Lumber Support Dial
Courtesy of MAZDA MOTORS CORP.

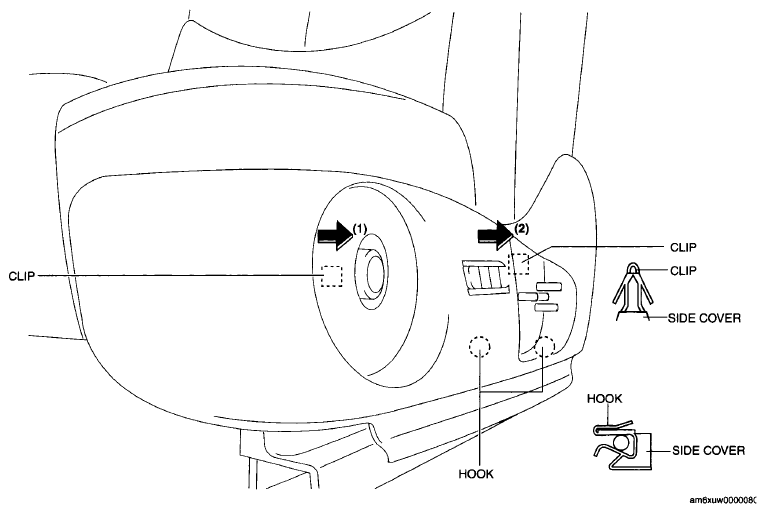

Pull the front seat side cover in the order of (1), (2) shown in the figure to disengage the hooks and clips.

Fig 3: Order Of Pulling Front Seat Side Cover
Courtesy of MAZDA MOTORS CORP.

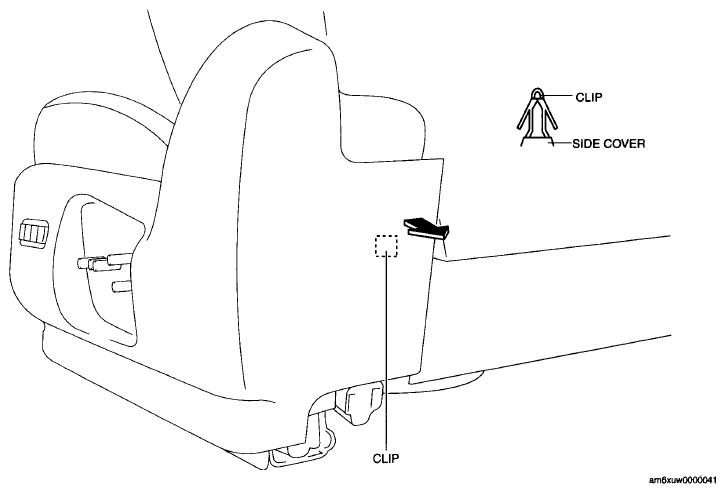

Pull the front seat side cover in the direction of arrow, remove the clip.

Fig 4: Pulling Front Seat Side Cover
Courtesy of MAZDA MOTORS CORP.
Remove the front seat side cover.
Disconnect the seat position memory switch connector.
Install in the reverse order of removal.
