Front Seat Removal/Installation: Passenger-side

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition to off.
  2. Disconnect the negative battery cable and wait 1 min or more.
  3. Remove the belt anchor cover. See FRONT SEAT BELT REMOVAL/INSTALLATION .
  4. Remove the lower anchor of the front seat belt installation bolt. See FRONT SEAT BELT REMOVAL/INSTALLATION .
  5. Pull the adjuster cover No. 1 in the direction of arrow and remove the clips.

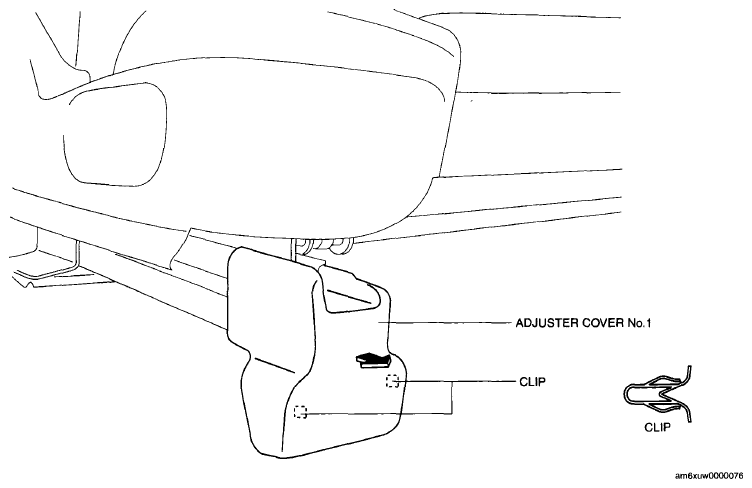

    Fig 1: Pulling Adjuster Cover No. 1
    G06200793Courtesy of MAZDA MOTORS CORP.
  6. Remove the adjuster cover No. 1.
  7. Remove the fastener.

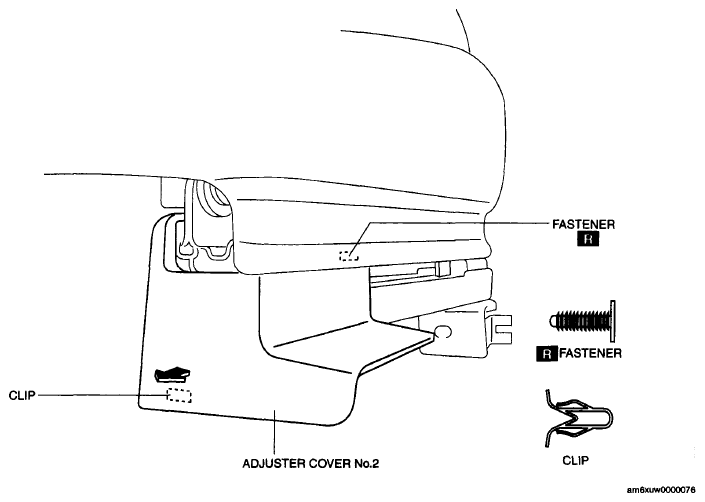

    Fig 2: Pulling Adjuster Cover No. 2
    G06200794Courtesy of MAZDA MOTORS CORP.
  8. Pull the adjuster cover No. 2 in the direction of arrow and remove the clip.
  9. Remove the adjuster cover No. 2.
  10. Remove the fastener.
    Fig 3: Pulling Adjuster Cover No. 3
    G06200795Courtesy of MAZDA MOTORS CORP.
  11. Pull the adjuster cover No. 3 indicated in the arrow shown in the figure, then remove the clip.
  12. While pulling the end of adjuster cover No. 3 in the direction of arrow (A) shown in the figure to free the guide from the bracket, remove adjuster cover No. 3 in the direction of arrow (B).

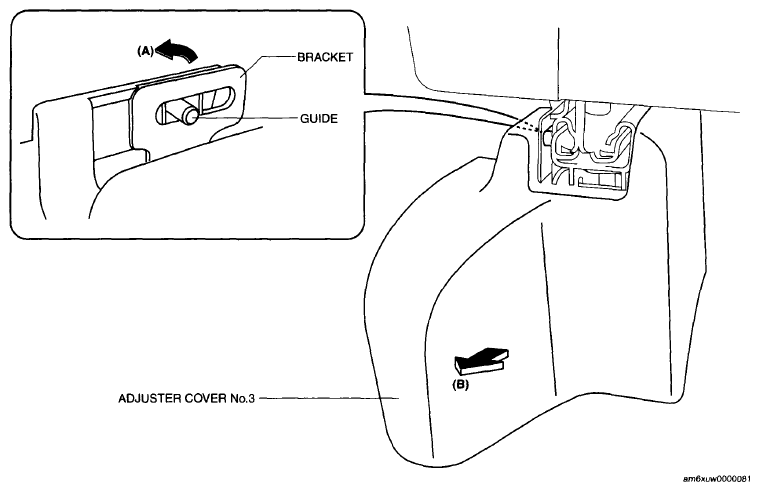

    Fig 4: Removing/Installing Adjuster Cover No. 3
    G06200796Courtesy of MAZDA MOTORS CORP.
  13. Disconnect the connector.

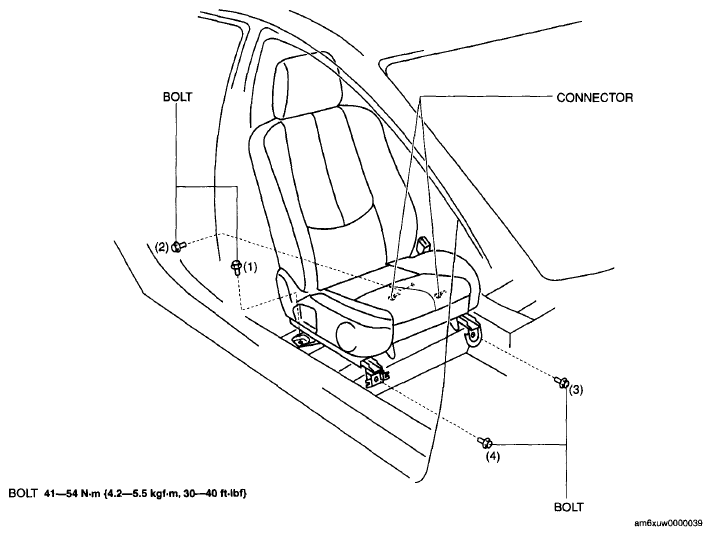

    Fig 5: Identifying Front Seat Mounting Bolts Removing/Installing Sequence
    G06200797Courtesy of MAZDA MOTORS CORP.
  14. Remove the bolts in the order of arrow (1), (2), (3), (4) shown in the figure remove the front seat.
  15. Install in the reverse order of removal.
