Front Seat Removal/Installation: Driver-side

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition to off.
  2. Disconnect the negative battery cable and wait 1 min or more.
  3. Pull the adjuster cover No. 1 in the direction of arrow and remove the clips.

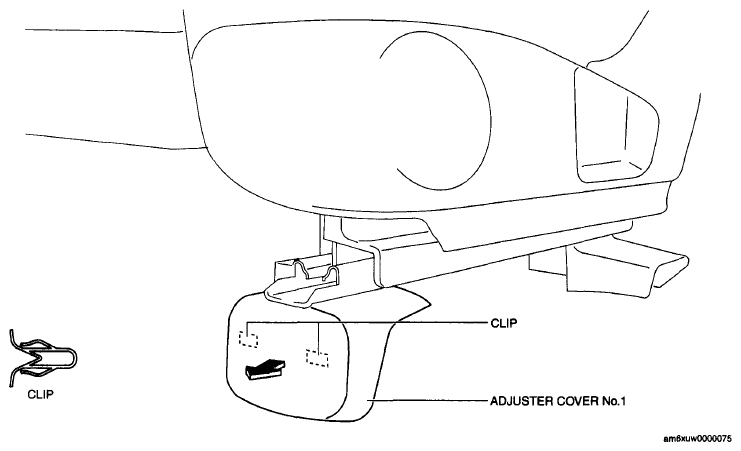

    Fig 1: Pulling Adjuster Cover No. 1
    G06200788Courtesy of MAZDA MOTORS CORP.
  4. Remove the adjuster cover No. 1.
  5. Pull the adjuster cover No. 2 in the direction of arrow and remove the clip.

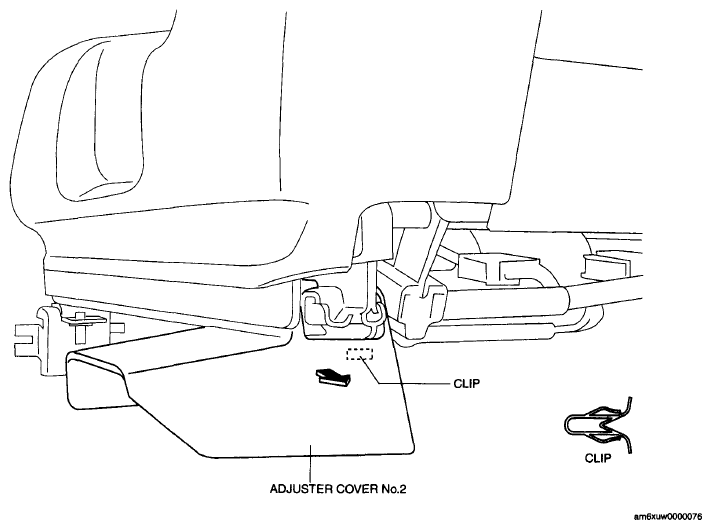

    Fig 2: Pulling Adjuster Cover No. 2
    G06200789Courtesy of MAZDA MOTORS CORP.
  6. Pull the adjuster cover No. 2 in the direction of arrow (A) shown in the figure to release the tabs, then raise the adjuster cover No. 2 in the direction of arrow (B).

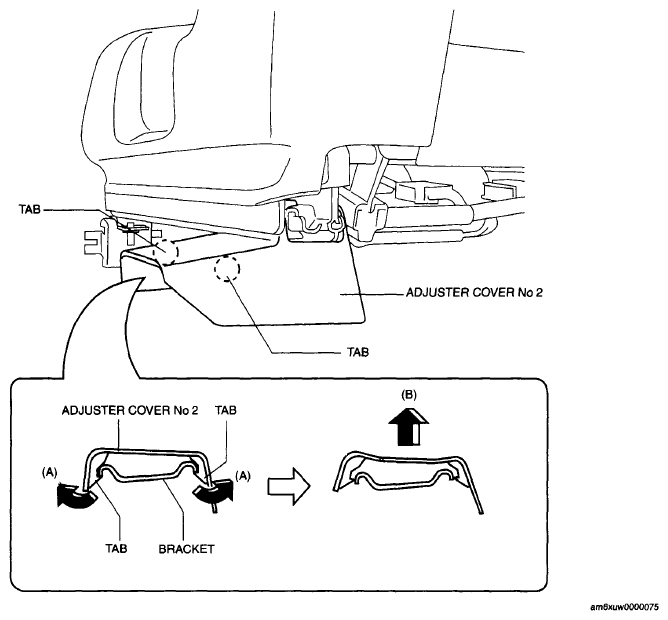

    Fig 3: Raising And Pulling Adjuster Cover No. 2
    G06200790Courtesy of MAZDA MOTORS CORP.
  7. Remove the adjuster cover No. 2.
  8. Pull the adjuster cover No. 3 in the direction of arrow and remove the clip.
    Fig 4: Pulling Adjuster Cover No. 3
    G06200791Courtesy of MAZDA MOTORS CORP.
  9. Remove the adjuster cover No. 3.
  10. Disconnect the connector.

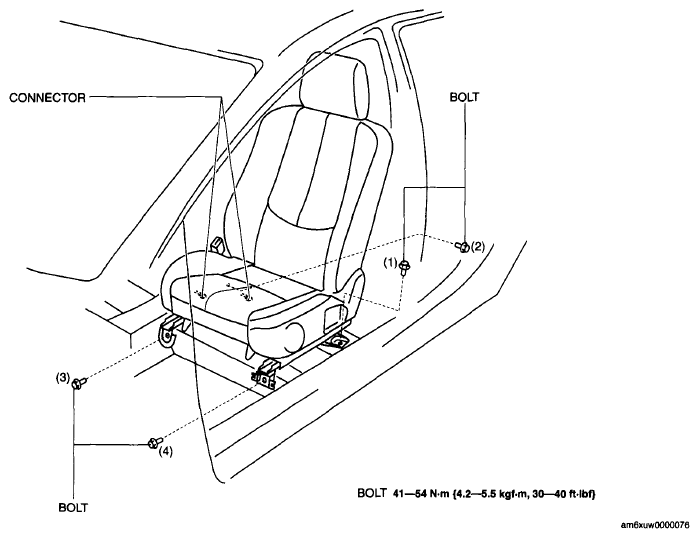

    Fig 5: Identifying Adjuster Cover No. 3 Mounting Bolts Removing Sequence
    G06200792Courtesy of MAZDA MOTORS CORP.
  11. Remove the bolts in the order of arrow (1), (2), (3), (4) shown in the figure, then remove the front seat.
  12. Install in the reverse order of removal
