High Difference Adjustment
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

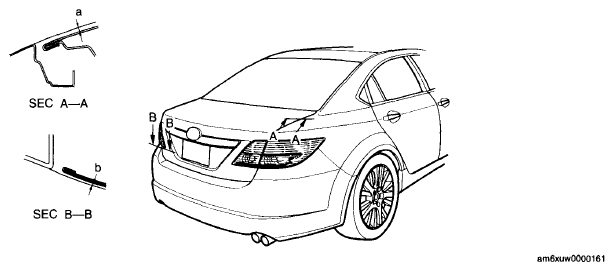

- Measure the height difference between the trunk lid and the body.
Courtesy of MAZDA MOTORS CORP.
Standard Clearance
- -1.5-0.5 mm {-0.05-0.02 in}
- -1.8-1.8 mm {-0.07-0.07 in}
- Turn the stop rubber to adjust.
