Gap Adjustment

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Measure the gap difference between the trunk lid and the body.
Loosen the trunk lid hinge installation nuts or the trunk lid lock striker installation screws, and adjust the trunk lid.

Fig 1: Adjusting Trunk Lid
Courtesy of MAZDA MOTORS CORP.

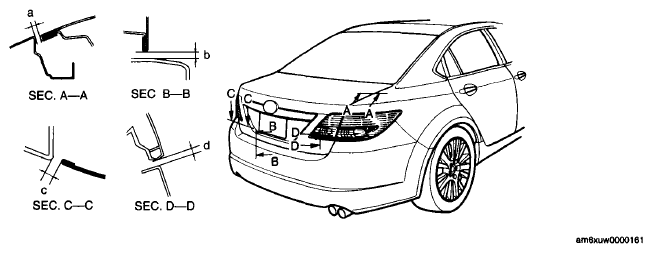

Fig 2: Identifying Clearance Between Trunk Lid And Body
Courtesy of MAZDA MOTORS CORP.

Standard Clearance
1. 2.5-4.5 mm {0.10-0.18 in}
2. 4.0-8.0 mm {0.16-0.31 in}
3. 2.8-5.8 mm {-0.12-0.22 in}
4. 0.5-2.8 mm {0.02-0.11 in}
Tighten the nuts or screw.
