Seal Plate Removal/Installation: Left-Side

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. See FRONT BUMPER REMOVAL/INSTALLATION )
  3. Remove the front energy-absorbing form. See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION )
  4. Remove the fastener.

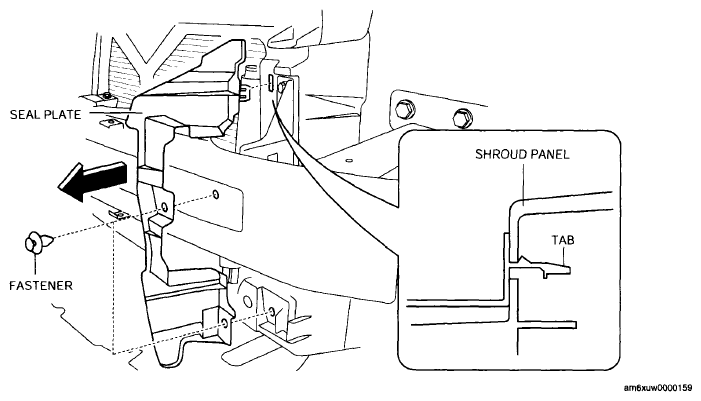

    Fig 1: Identifying Seal Plate (Left-Side)
    G06200678Courtesy of MAZDA MOTORS CORP.
  5. Remove the seal plate.
  6. Install in the reverse order of remove.
