Rear Bumper Installation Note
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Spread the rear bumper ends apart.
- Assemble the rear bumper to the body.

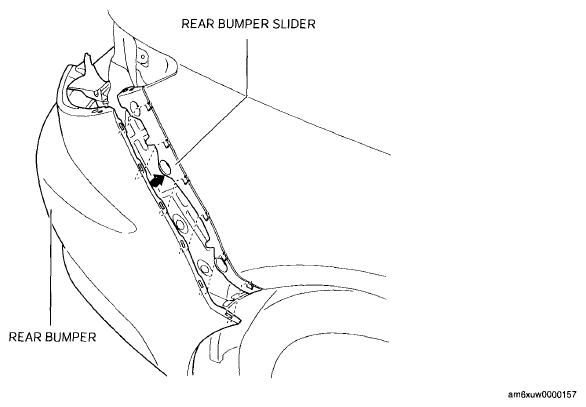

- Press the rear bumper connecting area in the direction of the arrow shown in the figure to engage with the bumper slider.
Courtesy of MAZDA MOTORS CORP.
