Rear Bumper Reinforcement Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper. See REAR BUMPER REMOVAL/INSTALLATION )
  2. Remove the bolts and remove the rear bumper reinforcement.

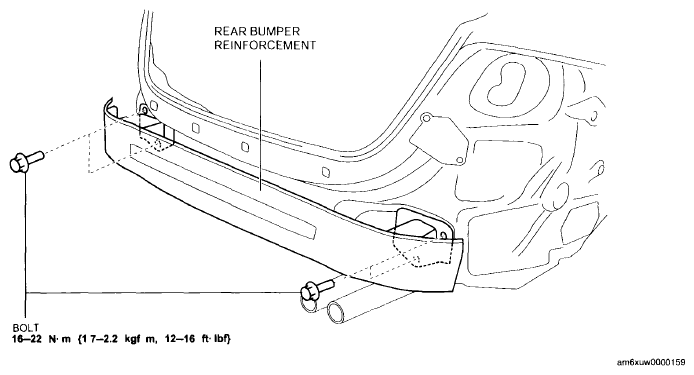

    Fig 1: Rear Bumper Reinforcement With Mounting Bolts Torque Specifications
    G06200699Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
