Height Difference Adjustment

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Measure the height difference between the hood and body.

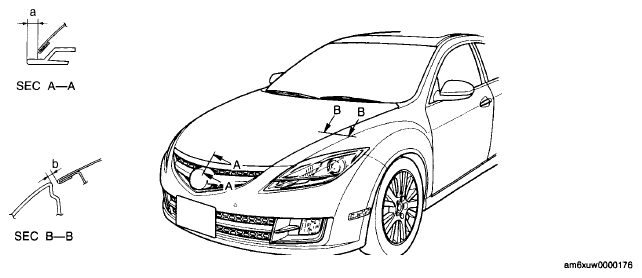

Fig 1: Identifying Clearance Between Hood And Body
Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. 3.5-6.5 mm {0.14-0.25 in}
2. -1.2-1.2 mm {-0.047-0.047 in}
3. -1.2-1.2 mm {-0.047-0.047 in}
Turn the stop rubber to adjust.

Fig 2: Turning Stop Rubber
Courtesy of MAZDA MOTORS CORP.
