Gap Adjustment

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Measure the gap between the hood and body.

Fig 1: Identifying Clearance Between Hood And Body
Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. -0.1-2.9 mm {-0.03-0.11 in}
2. 3.5-6.5 mm {0.14-0.25 in}
Loosen the hood hinge installation bolts and adjust the gap by moving the hood hinge back and forth, left and right.

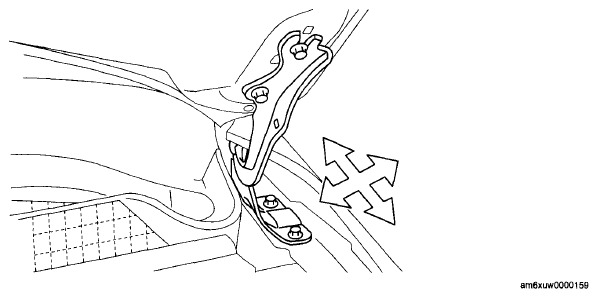

Fig 2: Adjusting Hood Hinge Gap
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts. See HOOD REMOVAL/INSTALLATION .
