Front Bumper Disassembly/Assembly

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front side marker light. See FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION .
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

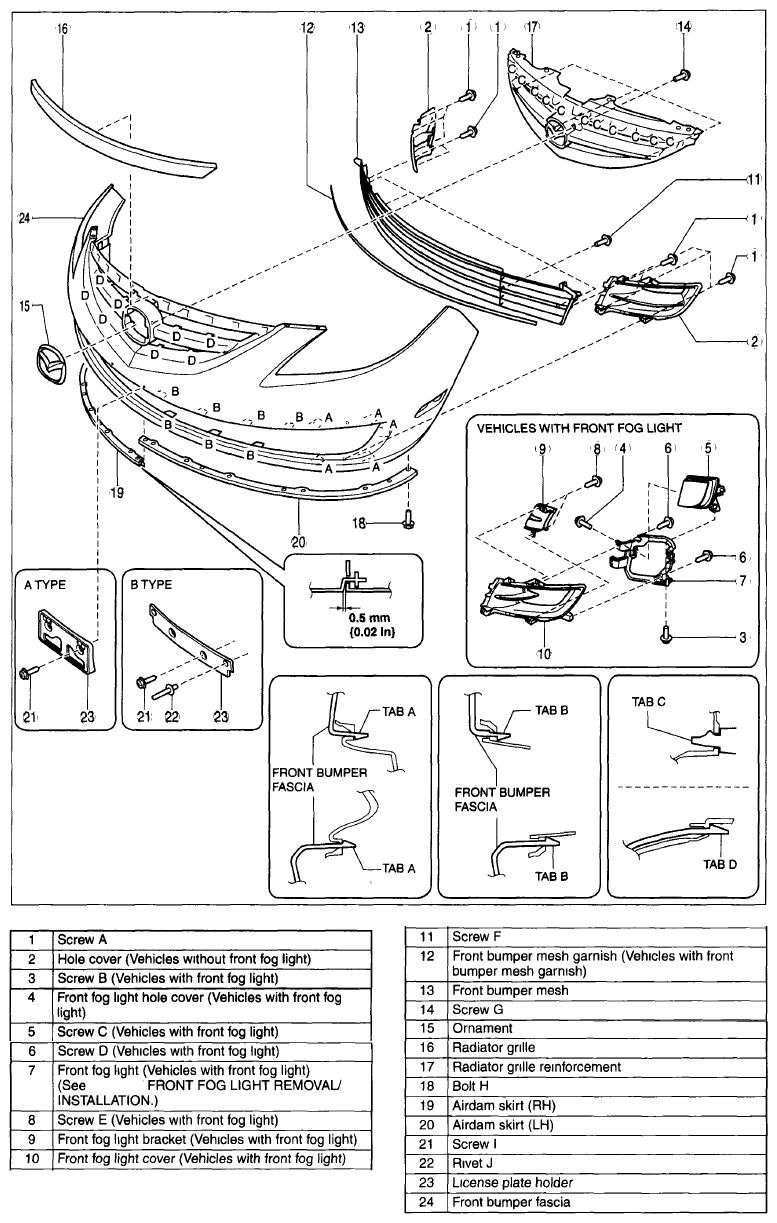

    Fig 1: Disassembled View Of Front Bumper
    G06200674Courtesy of MAZDA MOTORS CORP.
