Energy-Absorbing Form Removal/Installation: Front

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. See FRONT BUMPER REMOVAL/INSTALLATION )
  3. Remove the fastener.

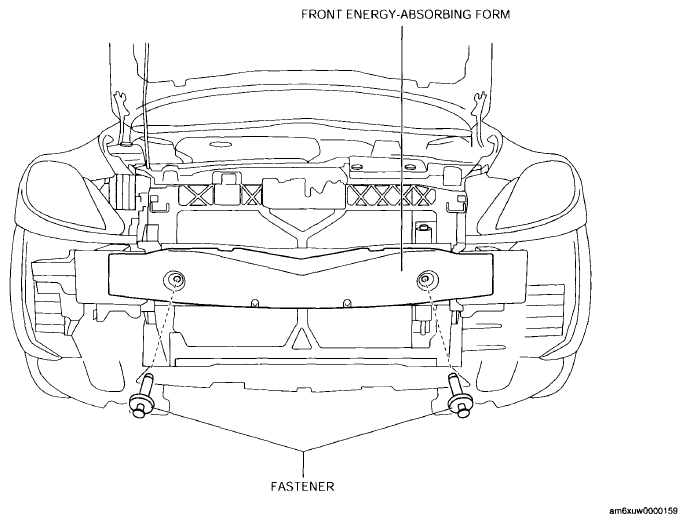

    Fig 1: Identifying Front Energy-Absorbing Form And Fastener
    G06200675Courtesy of MAZDA MOTORS CORP.
  4. Remove the front energy-absorbing form.
  5. Install in the reverse order of removal.
