Shift Diagram (Normal Mode at D Range)

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

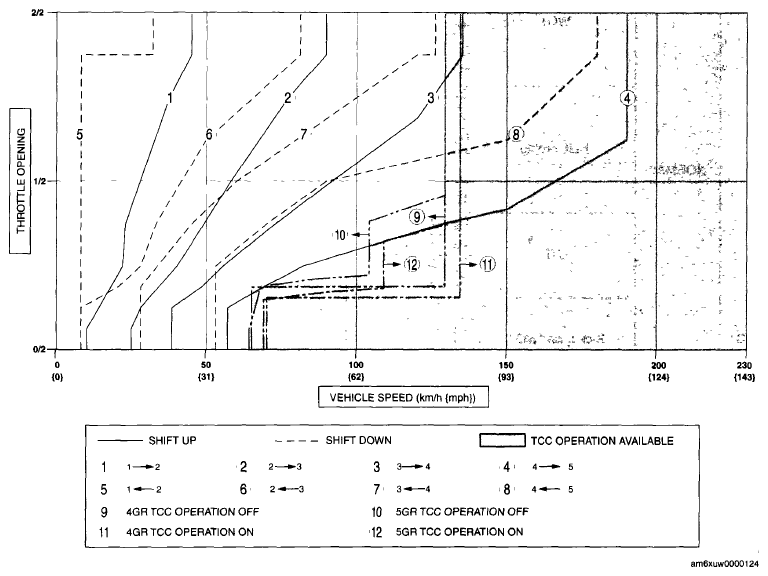

Fig 1: Shift Diagram (Normal Mode At D Range)
G06205842Courtesy of MAZDA MOTORS CORP.
