Drive Plate Removal/Installation [Aw6A-El]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [AW6A-EL] .)
  2. Remove in the order indicated in the figure.

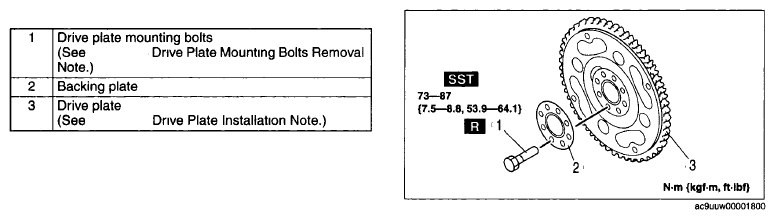

    3. Fig 1: Drive Plate Replacement Components With Torque Specifications
    G06200190Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
