No. 4 Engine Mount Bracket Removal Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SST  using the following procedure.
    CAUTION:
    • Refer to the SST Instruction manual for the basic handling procedure.
    NOTE:
    • When installing the SST,  adjust the position of each shaft so that they do not interfere with the vehicle body.
    Fig 1: Identifying Rear Shaft, Side Bar, Front Shaft & Front Foot No. 2
    G06205913Courtesy of MAZDA MOTORS CORP.
    1. As shown in the figure, set the rear shafts of the SST  to the left and right shock absorber nuts.

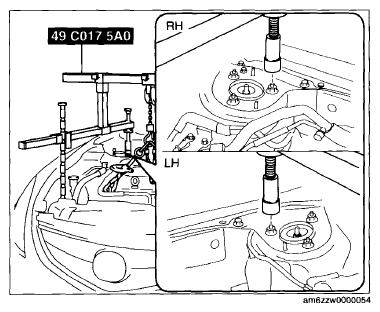

      Fig 2: Setting Rear Shafts Of SST To Shock Absorber Nuts
      G06205914Courtesy of MAZDA MOTORS CORP.
    2. Install front foot No. 2 to the left/right front shaft of the SST  , then align the groove of the front shaft of the SST  with the folded up part of the vehicle as shown in the figure.

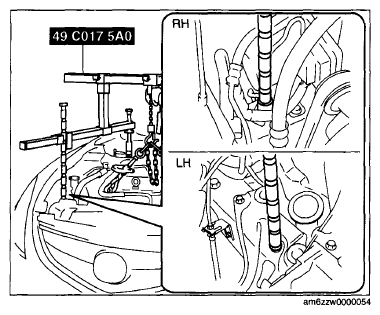

      Fig 3: Aligning Groove Of Front Shaft Of SST
      G06205915Courtesy of MAZDA MOTORS CORP.
    3. Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal. Make sure each joint is securely tightened.
  2. Fig 4: View Of SST (49 C017 5A0)
    G06205916Courtesy of MAZDA MOTORS CORP.
  3. Remove the No. 4 engine mount bracket.
