Front Lower Arm Inner Side Bolt (Front) Installation Note [L5]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Support the crossmember component with a jack.
Lower the jack gradually and tilt the crossmember towards the front.
Install the front lower arm inner side bolt (front).
Install the nuts at the front of the crossmember.
Tightening torque

120-154 N.m {13-15 kgf.m, 89-113 ft.lbf}

Fig 1: Supporting Crossmember Component With Jack
Courtesy of MAZDA MOTORS CORP.
Install the crossmember bracket bolts A, and tighten the crossmember nut B.
Tightening torque

Bolts A: 94-116 N.m {9.6-11 kgf.m, 70-85 ft.lbf}

Nut B: 120-154 N.m {13-15 kgf.m, 89-113 ft.lbf}
Connect the steering pipe to the front crossmember.
Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}

Fig 2: Locating Crossmember Bracket Bolts A And Crossmember Nut B
Courtesy of MAZDA MOTORS CORP.
Install the radiator hose bracket to the front crossmember.

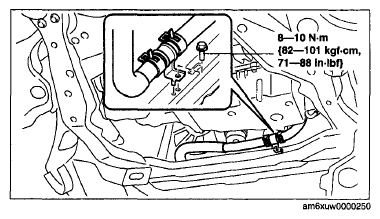

Fig 3: Radiator Hose Bracket Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
