Tie-Rod Lock Washer, Tie Rod Assembly Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily install the tie-rod lock washer and the tie rod to the steering rack.
Set the SST against the flat surface area of the tie rod and set the wrench against the flat surface area of the steering rack, and then tighten the tie rod to the specified torque.
CAUTION:
- If a tool is installed to the SST (49 E032 3Q8), install it perpendicular as shown in the figure. If it is installed incorrectly, the SST will readily come off the tie rod which could result in damage to the tie rod during the servicing.

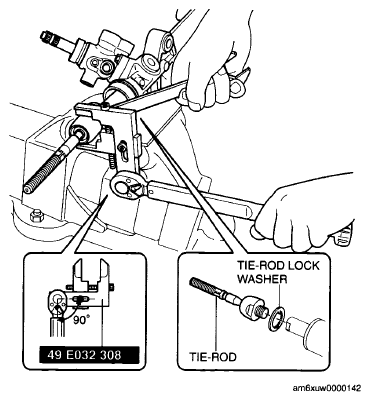

  Fig 1: Tightening Tie Rod
  Courtesy of MAZDA MOTORS CORP.
Using a hammer, flatten the tabs on the tie-rod lock washer to lock the tie rod.

Fig 2: Bending Tabs On Tie-Rod Lock Washer To Lock Tie Rod
Courtesy of MAZDA MOTORS CORP.
