Suction Hose Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt shown in the figure, and position the power steering fluid reservoir out of the way.
    Fig 1: Power Steering Fluid Reservoir Bolt With Torque Specifications
    G06200291Courtesy of MAZDA MOTORS CORP.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

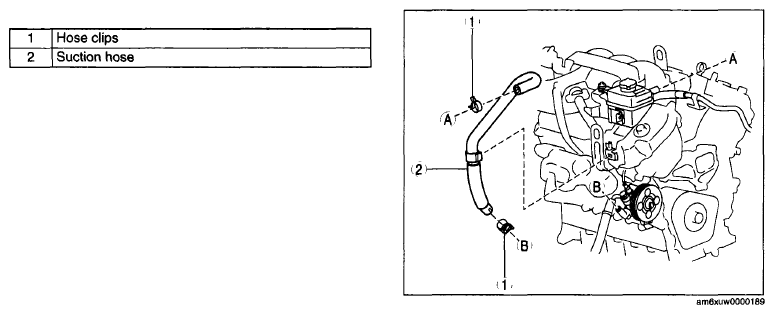

    Fig 2: Identifying Suction Hose Components
    G06200301Courtesy of MAZDA MOTORS CORP.
