Joint Shaft Disassembly [L5]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

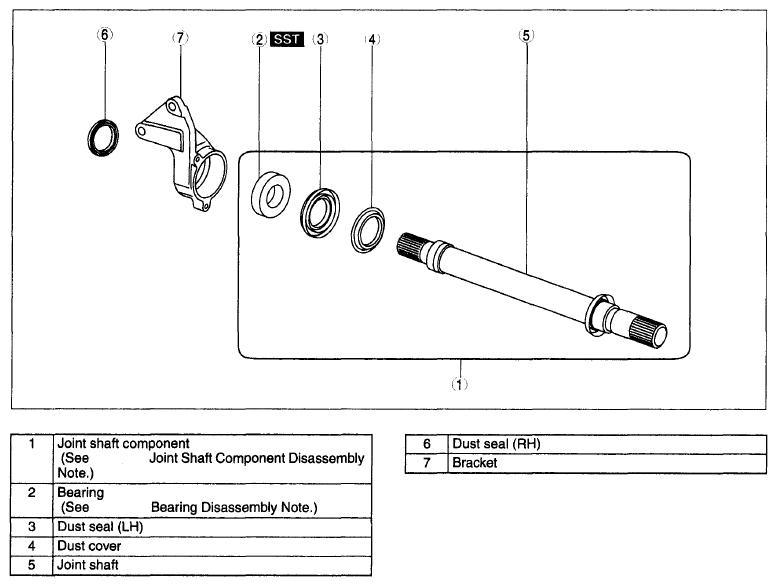

Fig 1: Identifying Joint Shaft Disassemble Order
Courtesy of MAZDA MOTORS CORP.
