Joint Shaft Assembly [MZI-3.7]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble in the order indicated in the table

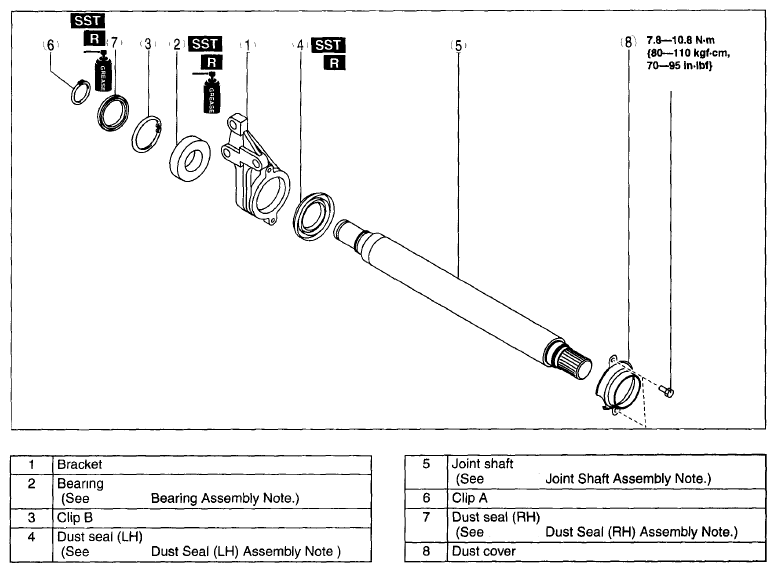

    Fig 1: Identifying Joint Shaft Assembling Order
    G06205504Courtesy of MAZDA MOTORS CORP.
