Roof Molding Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the roof molding to the front T-stud

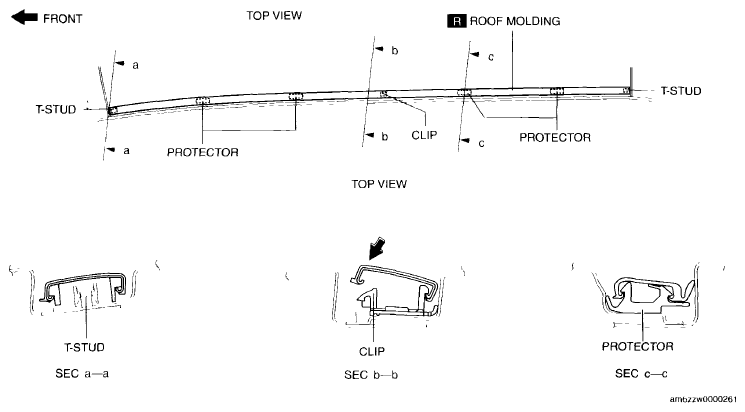

Fig 1: Installing Roof Molding To Front T-Stud
Courtesy of MAZDA MOTORS CORP.
Hook the roof molding to the clip and attach the roof molding while pressing it in the direction of the arrow shown in the figure
Install the roof molding to the rear T-stud
Press in the protector installation positions shown in the figure and firmly adhere them to the body
