Rear Sash Molding Removal

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

Press tab C in the direction of the arrow and remove it.

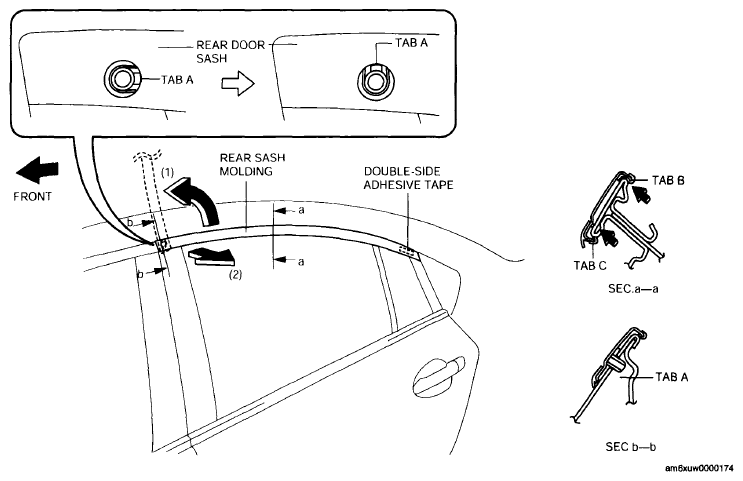

Fig 1: Identifying Tab C
Courtesy of MAZDA MOTORS CORP.
While cutting the double-sided adhesive tape using a flathead screwdriver or a razor, separate the rear sash molding from the body.
Press tab B in the direction of the arrow and remove it.
Rotate the front sash molding 90°.
