Rear Pillar Garnish Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Open the rear door.

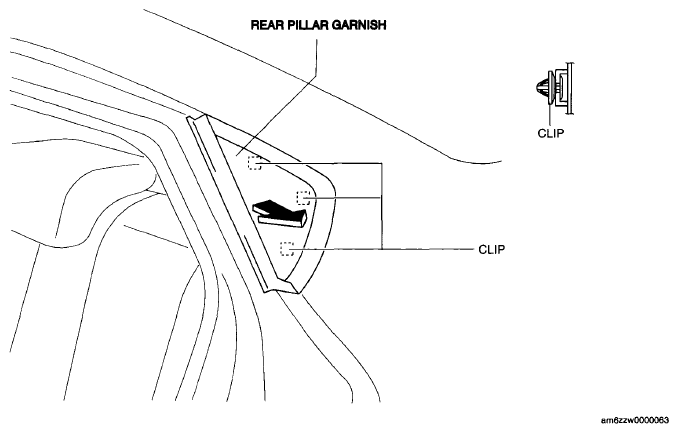

- Pull the rear pillar garnish in the direction shown in the figure and remove it while detaching the clips.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
