Extractor Chamber Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear combination light. See. REAR COMBINATION LIGHT REMOVAL/INSTALLATION .
  3. Remove the rear bumper. See. REAR BUMPER REMOVAL/INSTALLATION .
  4. Remove the clip.

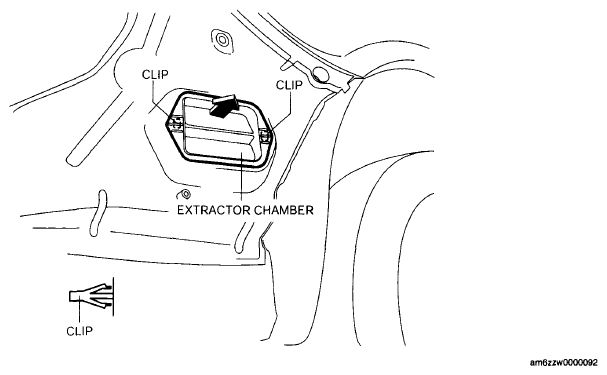

    Fig 1: View Of Clip Removal
    G06199426Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
