Quick Diagnosis Chart [Aw6A-El]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

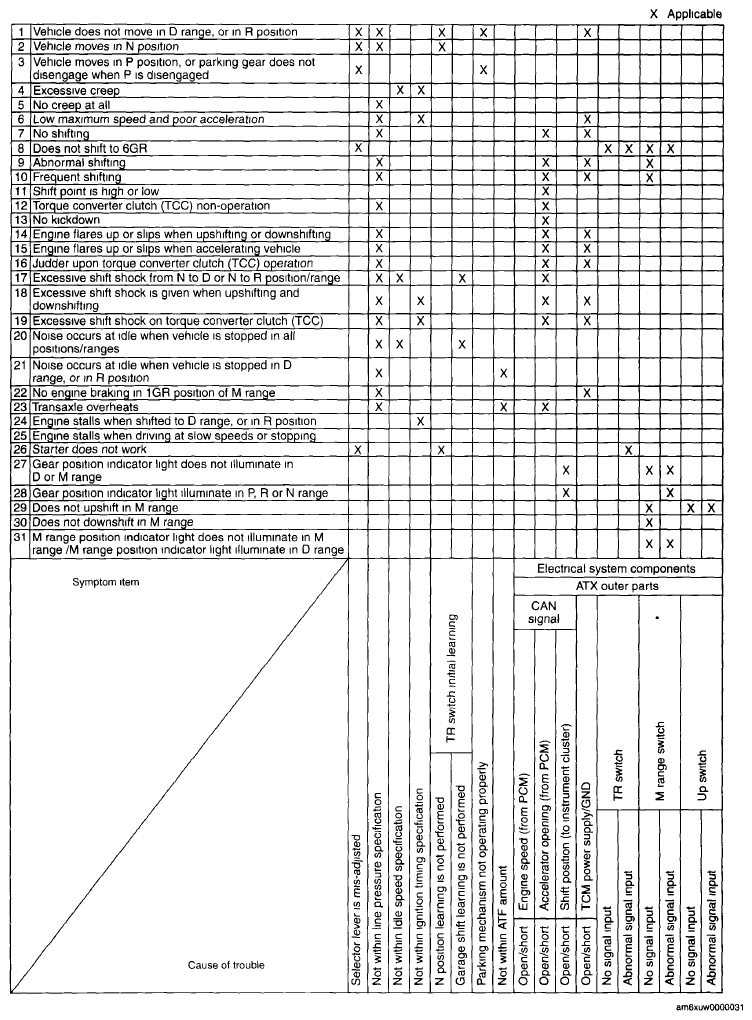

Fig 1: Diagnosis Chart - AW6A-EL (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

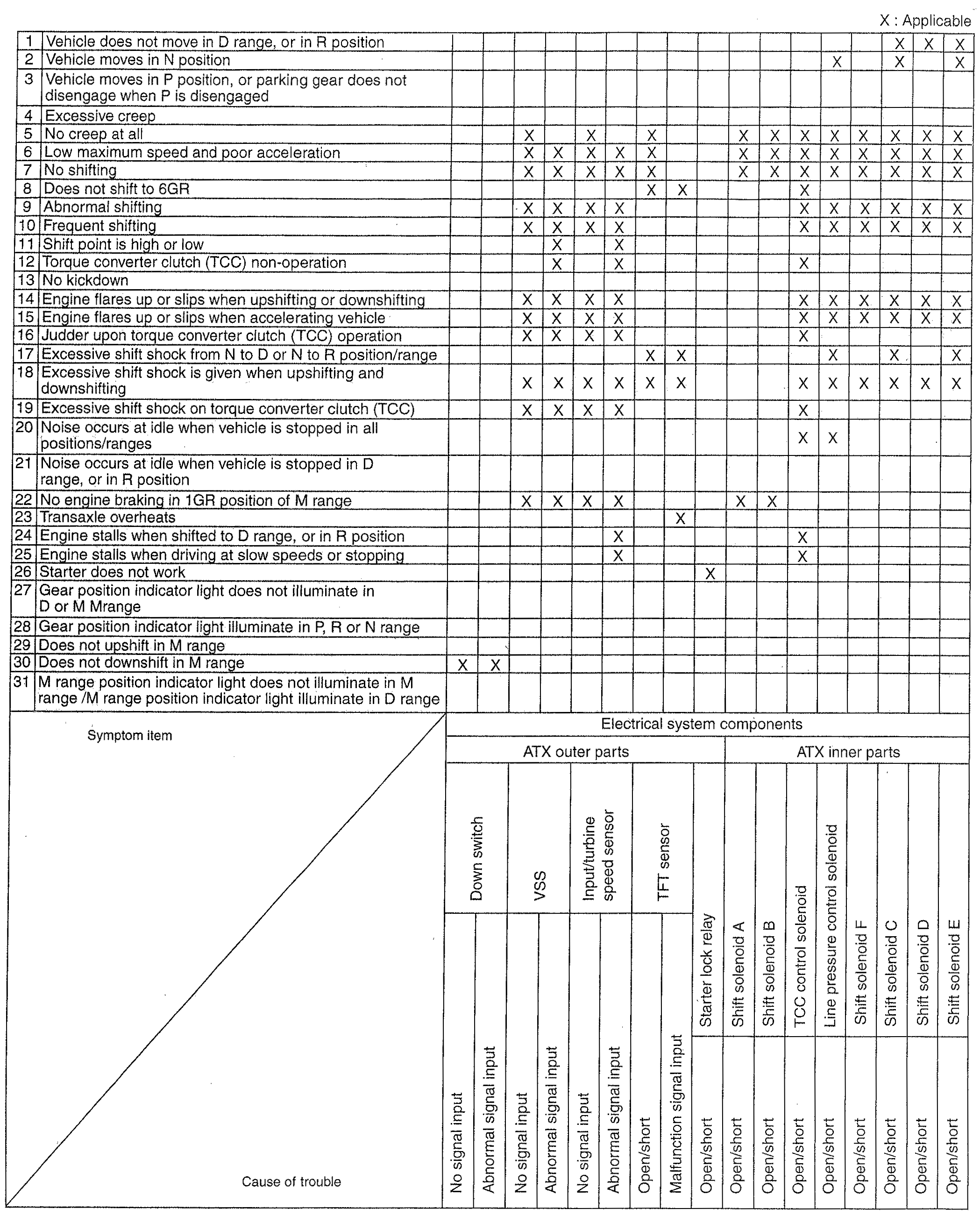

Fig 2: Diagnosis Chart - AW6A-EL (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

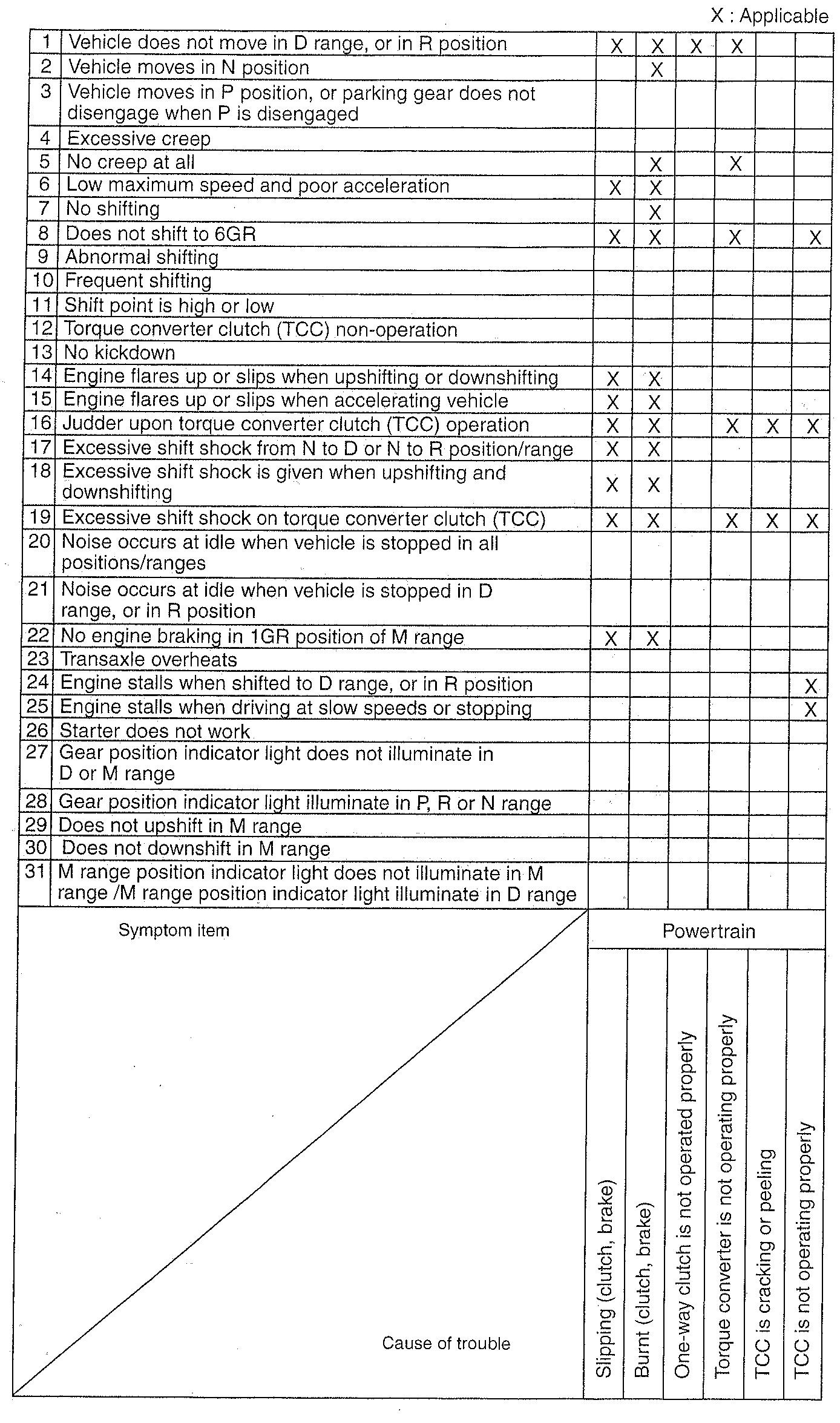

Fig 3: Diagnosis Chart - AW6A-EL (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

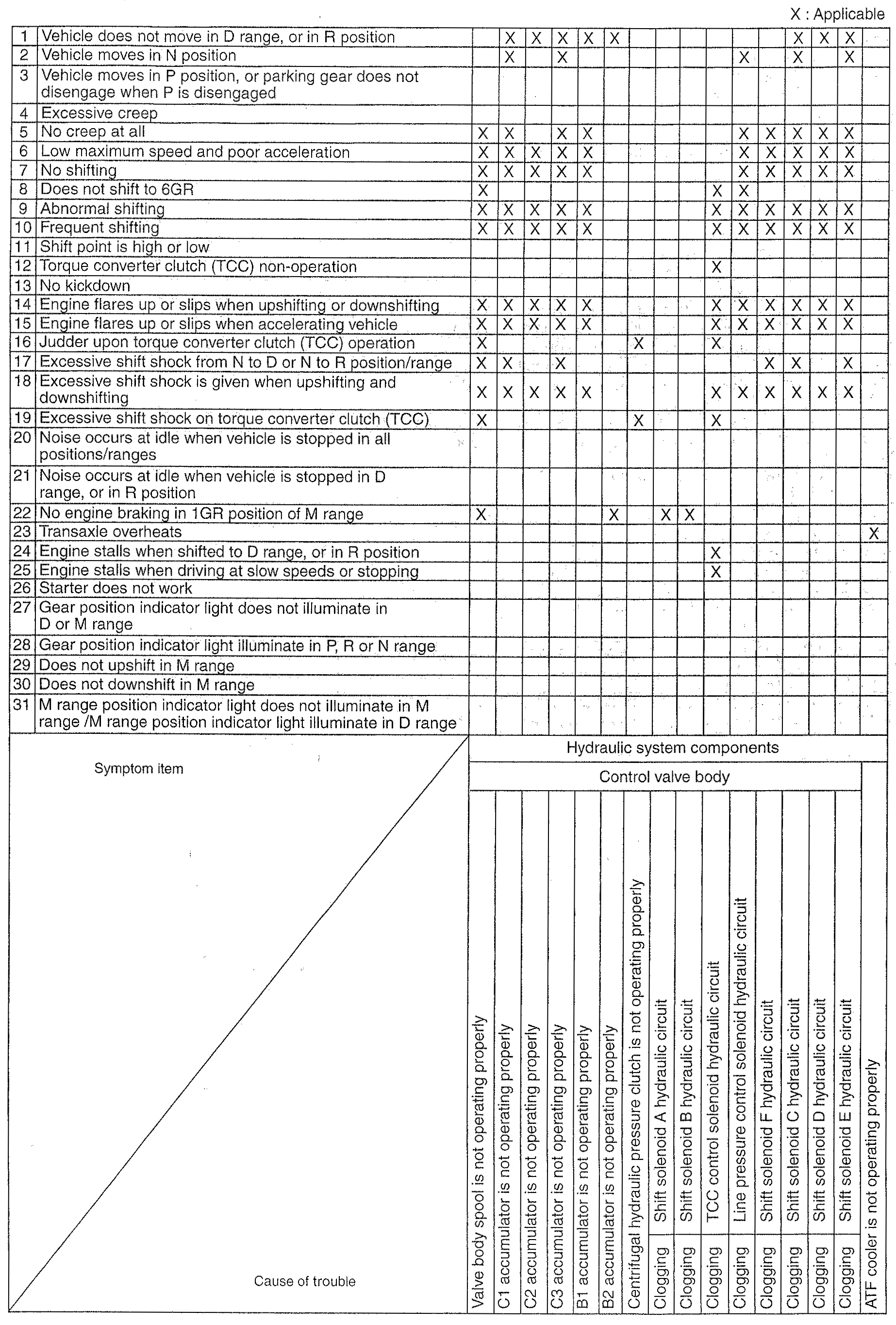

Fig 4: Diagnosis Chart - AW6A-EL (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
