TCM Removal/Installation [FS5A-El]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove in the order indicated in the table.

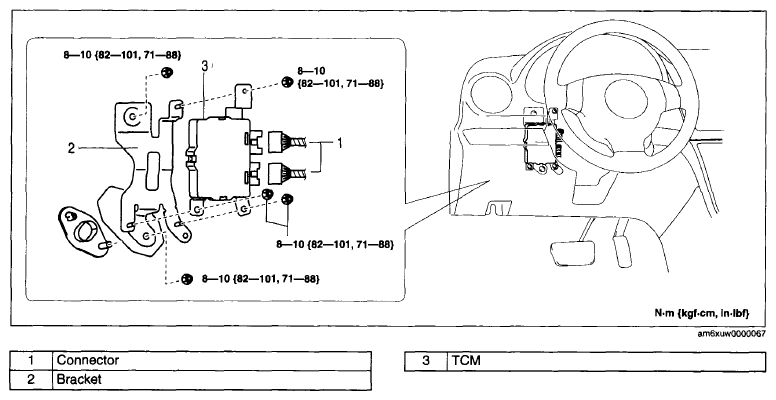

Fig 1: TCM Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
